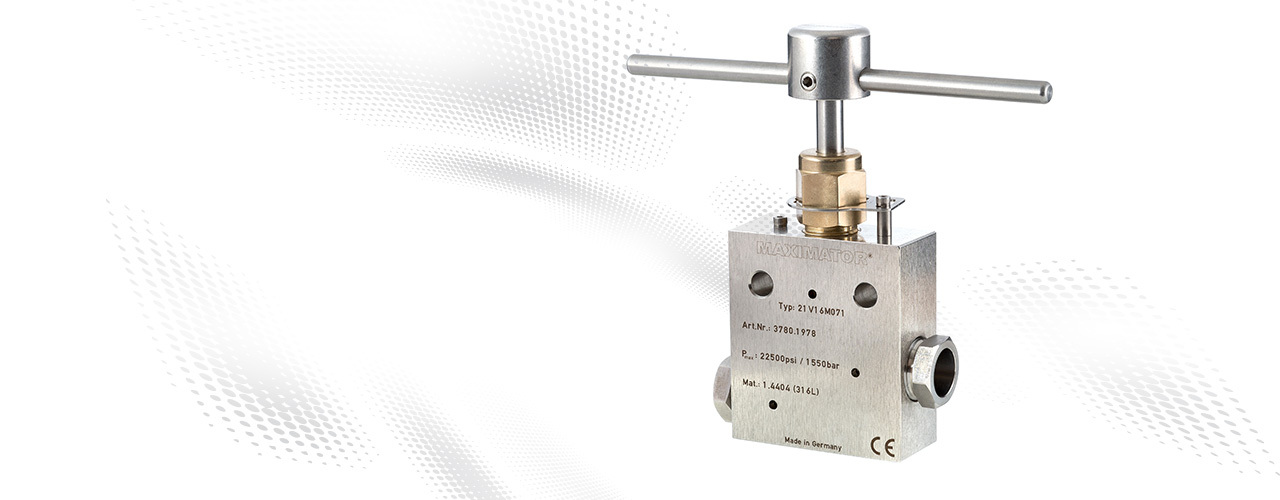

A key feature of the valves is the non-rotating stem which ensures a long life and high reliability. MAXIMATOR medium pressure valves with metal sealing have a high level of safety and reliability under adverse operating conditions.

The valves may be used with gas or liquid. Their traceability is ensured through extensively documented data (batch number, max. pressure, material number, type designation).

Each medium pressure valve of the MAXIMATOR series comes with the collar and gland.

Medium Pressure Valves feature:

• Rising stem design
• 316SS wetted parts with a 17-4 PH stem provides excellent corrosion resistance
• Metal-to-metal seating achieves bubble-tight shut-off, longer stem and seat life, greater durability for repeated open and close cycles
• PTFE and carbon packing with metal back-up rings offers reliable stem to body sealing
• Non-rotating stem prevents stem to seat galling
• Stem sleeve and packing gland materials have been selected to achieve optimum thread cycle life and reduced handle torque. All stem sleeve threads are rolled, assuring smooth operation
• Safety weep holes for all pressure connections and packing area
• Six different valve body patterns, with choice of vee or regulating type stem tip
• Maximator US offers a complete line of medium pressure fittings, tubing, check valves, line filters, anti-vibration fittings and safety head assemblies. All medium pressure valves and fittings use the medium pressure style connection. This coned and threaded connection features orifice sizes to match the high flow characteristics of the medium pressure valve, fitting and tubing line

MAXIMATOR medium pressure valves with metal to metal seats have a high level of safety and reliability under adverse operating conditions.  These valves may be used both with gases and liquids.

Traceability is ensured through extensively documented data (batch number, maximum pressure, material number, type designation). All medium pressure valves include glands and collars.
