LIQUID PUMPS
Air driven high-pressure pumps up to 79,750 psi.
Maximator Liquid Pumps
Maximator® air-driven piston-style reciprocating pumps are a fast and effective pumping solution capable of delivering a wide range of pressures and flow rates. Our pumps get their power from a compressed air source and combine positive displacement with the capability to hold pressure for long periods of time. A variety of material and seal options allow almost any fluid to be pressurized. Maximator® pumps are rugged and rebuildable and can tolerate all installation positions and most environments.

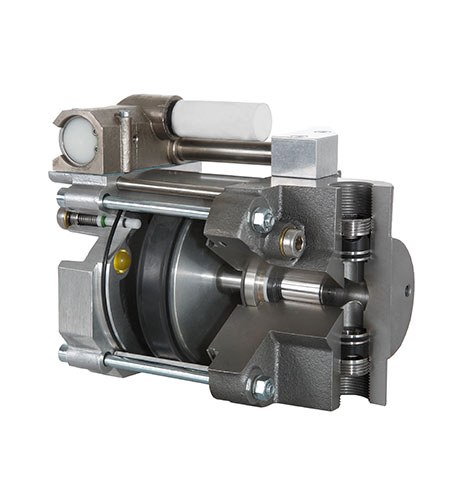

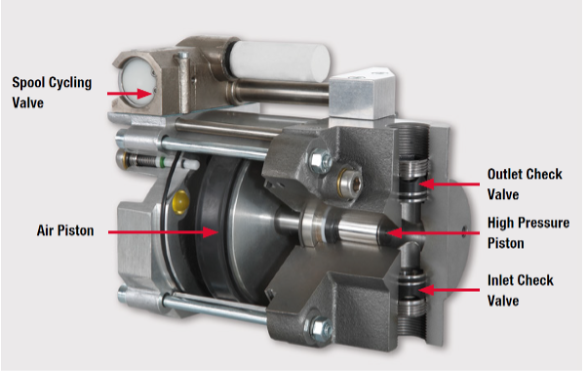

How They Work
| 8. Pilot Vent 9. Outlet Muffler 10. Inlet Check Valve 11. Outlet Check Valve 12. Drive Air Flow 13. Exhaust Flow |
Oil Service
-

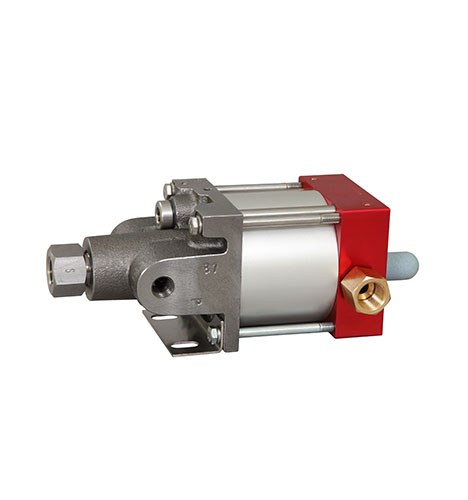

PPO Series
Pressures from 60 to 14500 PSI
PPO pumps are lightweight and rugged making them ideal for portable power packs and are available in eight pressure ratios as listed below. PPO pumps are single acting, single air drive head types.
-

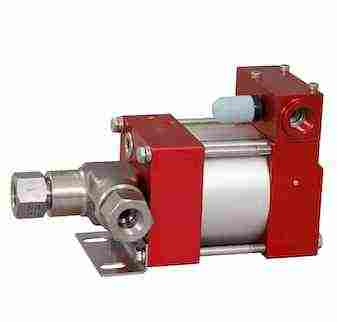

S Series
Pressures from 105 to 14500 PSI
S pumps are compact and lightweight and are designed for simple installation in both static and portable applications. Available in six pressure ratios, S pumps are ideal for applications demanding fast response times.
-

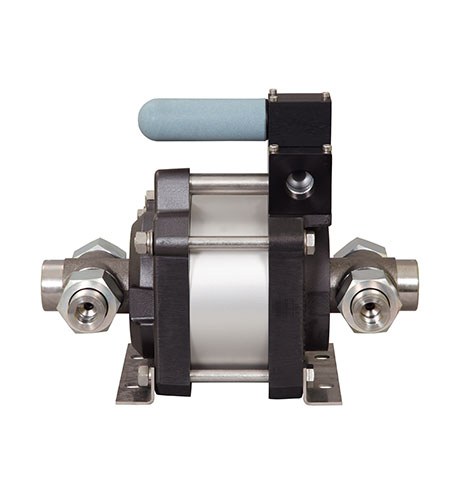

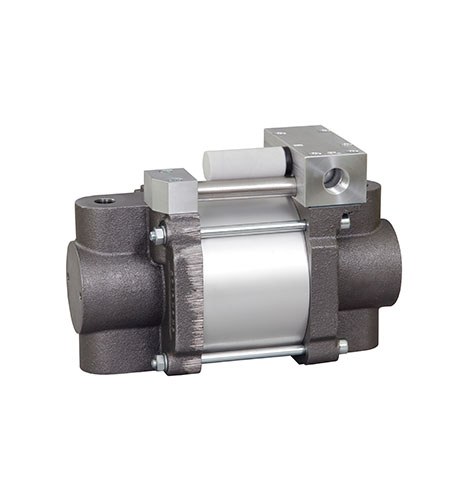

S-D series
Pressures from 105 to 14,500 PSI
S-D pumps are compact and lightweight and are designed for simple installation in both static and portable applications. Available in Six pressure ratios, S-D pumps are ideal for high flow applications. The S-D pumps are the double acting version of the S pumps.
Water or Oil Service
-
PP series
Pressures from 60 to 60,000 PSI
PP pumps are compact, lightweight and feature rugged construction. They are available as single acting with either single, double, or triple air drive heads and double acting with single air drive head.
-
L Series
Pressures from 165 to 101,000 PSI
L pumps are available as single acting with either a single or double air drive head and double acting with single air drive head.
-
L-D Series
Pressures from 165 to 38425 PSI
L-D pumps are double acting versions of the workhorse L series pumps.
-

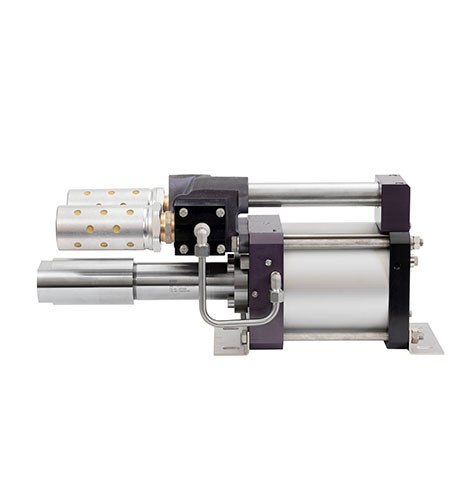

GX Series
Pressures from 540 to 22,500 PSI
GX pumps are high-flow pumps designed for rugged installations and built with environmental resistant materials. They are ideal for offshore applications with stainless steel wetted parts and corrosive resistant external components.
Chemical Service
-
LSF
Pressures from 165 to 23200 PSI
LSF series pumps are rugged and designed for chemical service applications. These pumps are available as single acting pumps with single or double air drive head and distance piece which provides a separation between the liquid and air drive sections.
-

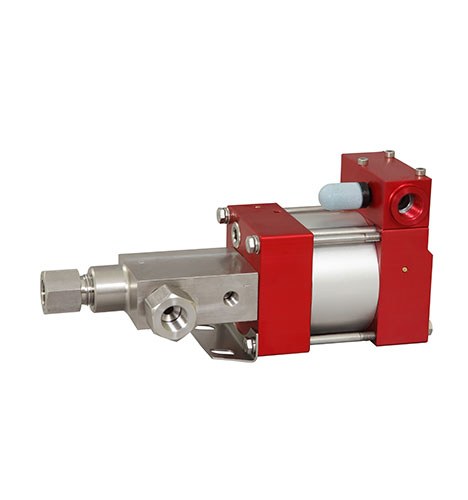

PPSF
Pressures from 60 to 14500 PSI
PPSF series pumps are rugged and designed for chemical service applications. These pumps are available as single acting pumps with single air drive head and distance piece which provides a separation between the liquid and air drive sections
Pumps for rapid filling and high discharge pressures
-

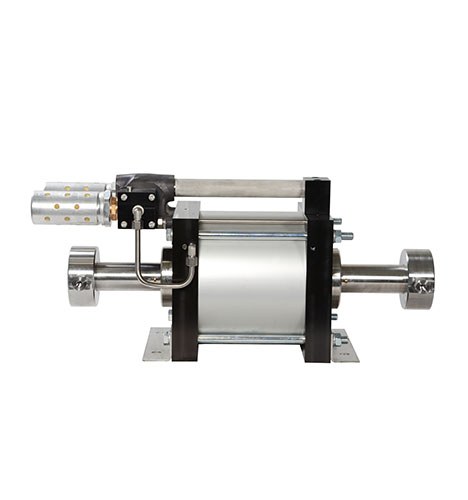

GPD Pumps
Pressures up to 40,000 psi
GPD pumps are double acting, and feature a single air drive head. They have been specifically designed to give a high discharge flow for fast fill at a relatively high discharge pressure.
The GPD Series Pumps are used in a wide range of applications primarily in Oil and Gas, Refinery, Petrochemical, Steel and Civil Engineering Industries. Common applications are: pressure testing large diameter pipelines, large hose reels and umbilical’s, wellhead control valves, operating Subsea valves, and the charging of hydraulic accumulators.
These pumps are commonly used in Chemical Injection applications for high flow of chemicals such as methanol, glycol and other related chemicals.
GPD pumps are suitable for hydraulic oil, water or chemical applications. High quality materials of construction ensures corrosion issues are kept to a minimum.
The design of the GPD pumps was primarily focused on the ease of maintenance and safe operation. The inlet and outlet check valves are a cartridge style which allows simple, easy exchange and replacement where necessary. Full separation of the air drive section and the hydraulic section is guaranteed because of a distance piece design between these areas thus ensuring no cross contamination can take place.
GPD Series pumps are marked with an EX sign and supplied with a declaration of conformity as defined in 94/9/EC. Enabling them to be used in areas subject to explosion hazards. They are in conformity to Group II Category 2G Explosion group IIB constructive safety.
-
Pressure up to 40,000 psi
Maximator GPD pumps are available with a double airhead drive enabling higher flows or lower drive air pressures. Capable of up to 12.5 gpm and discharge pressure up to 40,000 psi.

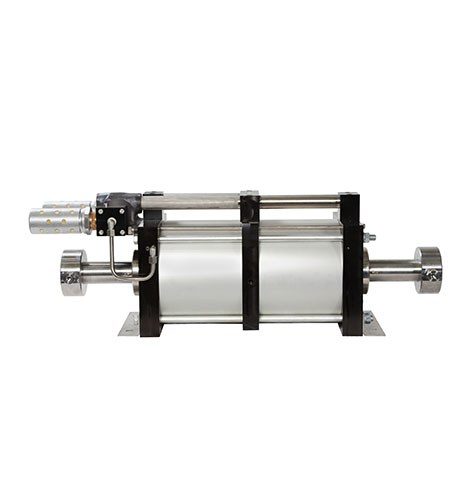

GPD...-2 pumps are double acting, single air drive head. They have been specifically designed to give a high discharge flow for fast fill at a relatively high discharge pressure.
The GPD Series Pumps are used in a wide range of applications primarily in Oil and Gas, Refinery, Petrochemical, Steel and Civil Engineering Industries. Common applications are: pressure testing large diameter pipelines, large hose reels and umbilical’s, wellhead control valves, operating Subsea valves, and the charging of hydraulic accumulators.
These pumps are commonly used in Chemical Injection applications for high flow of chemicals such as methanol, glycol and other related chemicals.
GPD pumps are suitable for hydraulic oil, water or chemicals. Premium materials of construction minimize corrosion.
The design of the GPD pumps was primarily focused on the ease of maintenance and safe operation. The inlet and outlet check valves are a cartridge style which allows simple, easy exchange and replacement where necessary. Full separation of the air drive section and the hydraulic section is guaranteed because of a distance piece design between these areas thus ensuring no cross contamination can take place.
GPD Series pumps are marked with an EX sign and supplied with a declaration of conformity as defined in 94/9/EC. Enabling them to be used in areas subject to explosion hazards. They are in conformity to Group II Category 2G Explosion group IIB constructive safety.
High-pressure Air-Driven Liquid Pump Applications
Maximator® High-Pressure Air-Driven Liquid Pumps come in a variety of sizes and are useful in many industries, including oil & gas, mining, construction, aviation, aeronautics, automotive, biomedical, botanical oil extraction, alternative energy, chemical, defense, food processing, fracking, and more. Typical applications in these industries and others include:
|
|
